- Security Mode: Fail Safe
- Model Number: F20-K TUYA kit
- Brand Name: OBO HANDS
- Origin: Mainland China
- Certification: None
- Smart home platform: Tuya
- Direction: None
- Type: Door Access Control System Kit
- Working Voltage: DC12V
- User Capacity: 100 fingerprints, 8000 cards

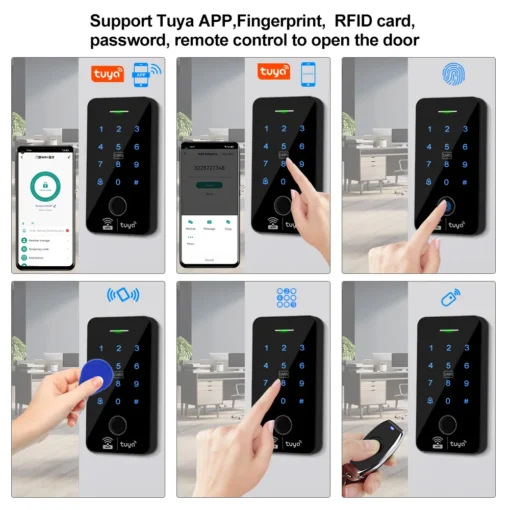

- Unlock Mode: Tuya APP, Fingerprint, Password, RFID Card
- WG interface: WG26/34 input/output
- Working Frequency: 125KHz and 13.56MHz
- RFID Access control keypad: IP68 Waterproof
- Application: Home / Office / Apartment / Hotel, etc

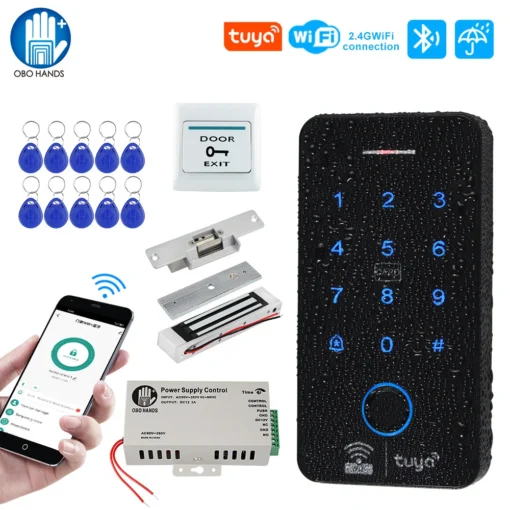

Wifi Bluetooth Tuya APP Outdoor Access Control System Kits Waterproof RFID Fingerprint Keypad Door Electric Magnetic Strike Lock
-
Material: high quality ABS plastic
-
Fingerprint capacity: 100
-
Card capacity: 8000
-
Panel: touch screen panel
-
Working frequency: 125KHz and 13 56MHz dual frequency
-
Card reading type: support EM ID and MF 1K compatible card
-
Card reading distance: 0-5CM
-
ldentification method: Fingerprint, RFID Card, Password, Tuya APP.
-
Record capacity: Mobile phone APP remotely view the latest door opening information.
-
Management cards: can be set.
-

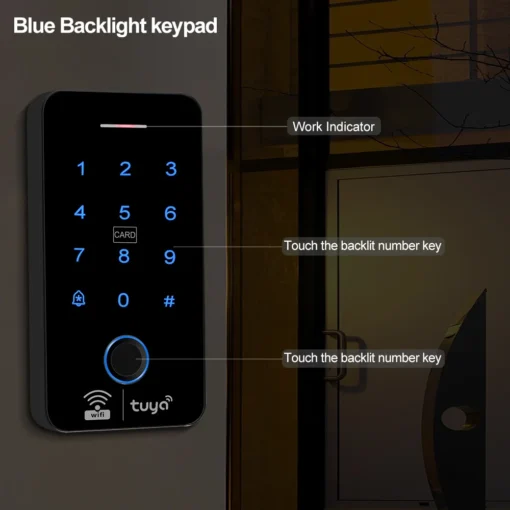

Backlight: has blue backlight
-

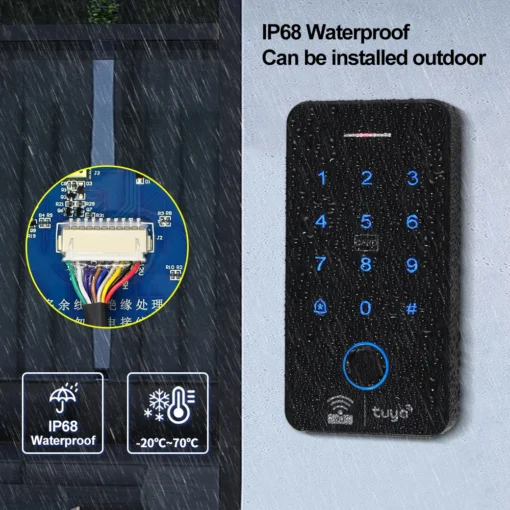

Waterproof function: IP68 waterproof, can be installed outdoor
-
Doorbell button: support wired doorbell
-
Language: Chinese, English.
-
Volume setting: 0~4 adjustable volume
-
Wiegand signal: WG26 / WG34 input/output. Supports machine data copy function.
-
Working voltage: DC 12V
-
Working current: ≤30mA
-
Remote control working frequency: 315MHz
-
Working temperature: -20。C ~ 70。C
-
Working Humidity: 20% ~ 90%
-
Product size: 138*70*18mm
For different angles of fingerprints, it can be quickly and accurately identified
Support 100 Fingerprints, 8000 RFID cards user capacity,
Mobile phone APP remotely view the latest 10000 lock opening information, more secure!
1) Supports language: Chinese, English.
2) You can add fingerprints, password, RFID cards on the APP, it’s very convenient.
3) You can open the door with Tuya APP unlocking button, or Tuya password.
4) A periodic password can be set, and the password is valid for a certain period of time.
5) You can also set a one-time password to open the door, and the password will expire after being used once within 6 hours.
6) Supports sharing password via WeChat, Email and SMS.
7) Can view unlock records. Click reminder information to view logs.
Tuya APP Setting Instruction
1) Scan QR code to download Tuya APP or Search Tuya on App store to download it.
2) Enter *123456 # 68 # on the access control machine, wait for 10 seconds, the indicator light flash and start pairing, pair with the mobile phone via WiFi.
3) Turn on Tuya APP to add new equipment.
4) Select "Auto scan", click "Searching".
5) Connect with available devices, click "Next". Choose Wi-Fi and enter password, click "Next".
6) Connecting, Added successfully, click "Done".
7) Click setting, turn on "remote unlock setting".
8) Select user, click "+" to add user, fill in name, click next step.
9) Add user fingerprints, Code, cards, remote control transmitter
10) Input the related information and click "Next step".
11) Add temporary code, click "Once’", input code name, click "Save offline code" , Done.
Notice: The code valid time for 6 hours and only can be used once.
12) Add ordinary user by clicking ordinary member “+”.
Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity.
-

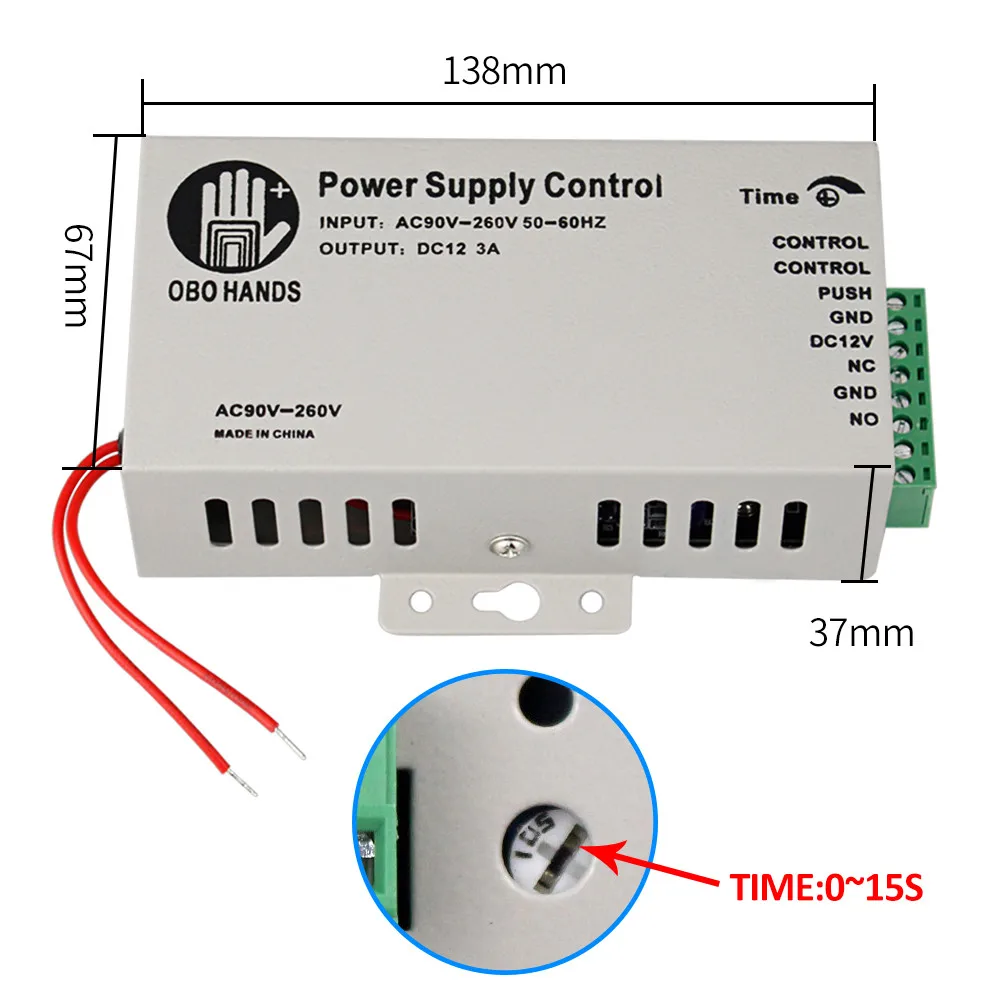

Material: Steel
-
Input Voltage: AC90-260V
-
Input Frequency: 50-60Hz
-
Output Voltage: DC12V/3A
-
Output Power: 36w
-
Dimension: 138*67*37mm
-
Time Delay: 0-15 seconds
Operating frequency: 125KHz
Detection range: 0-5cm
Each card pre programmed and has a metal keyring and unique card number.
Current: 200mA – 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Feature：Fail secure (NO), Fail safe(NC)

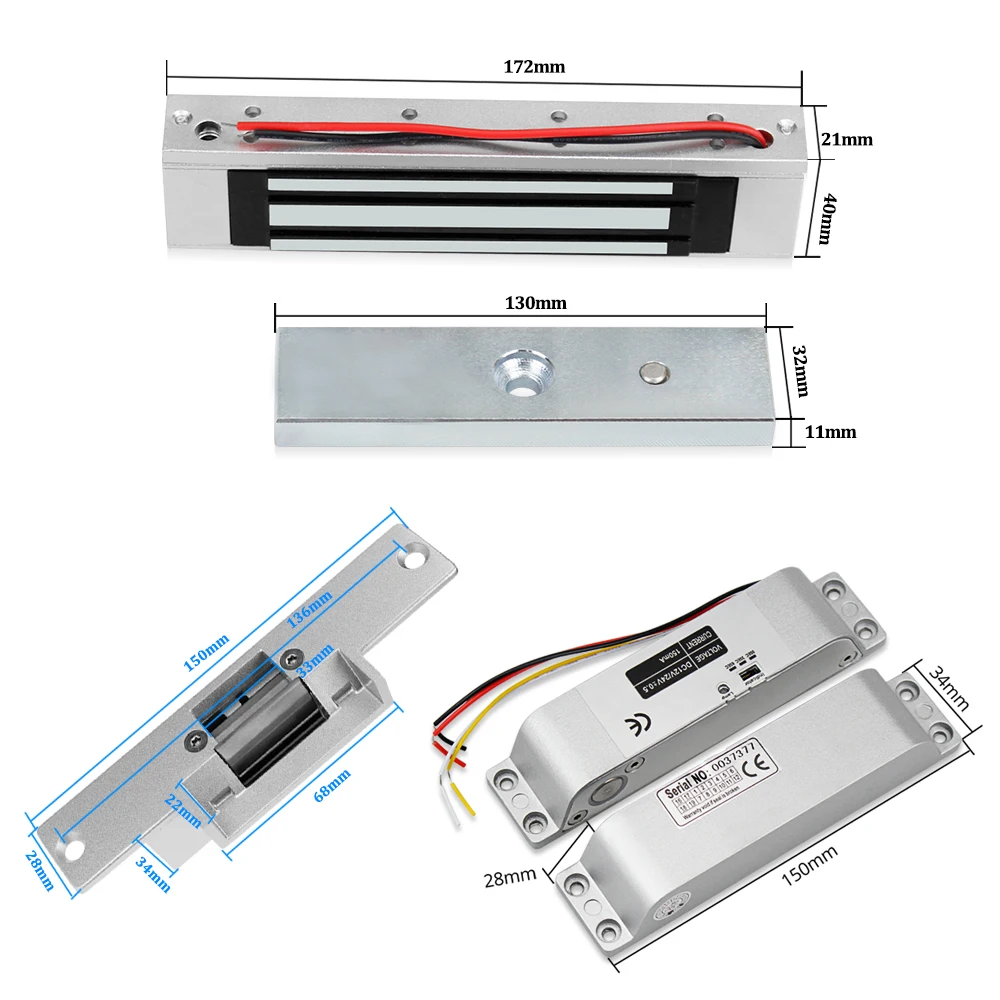

Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off.
Size: 150 x 28 × 34mm（L / W / H）
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside
Size of Armature Plate: 139Lx32x11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12VDC
Current: 12V/120mA
| Color | Kit1 (without Lock), Kit2 (Strike Lock), Kit3 (Bolt Lock), Kit4 (180KG Lock), Kit5 (180KG U Lock), Kit8 (180KG An Lock) |
|---|
